Written by Jessica JamesCategory:Published: 18 February 2018Last Updated: 18 February 2018Simpleware ScanIP represents software for converting 3D image data (MRI, CT, micro-CT.) into models suitable for CAD, CAE, and 3D Printing applications in Orthopaedics.The software offers a complete environment for visualizing, processing, and exporting models from image data for medical device R&D and other biomechanics tasks.Simpleware ScanIP is 510(k) certified as a medical device.Learn more and get a free trial at.
P-2019.09/ 9 September 2019; 60 days ago ( 2019-09-09);CommercialWebsiteSynopsys Simpleware ScanIP is a 3D image processing and model generation software program developed by to visualise, analyse, quantify, segment and export 3D image data from (MRI), (CT), and other modalities for (CAD), (FEA), (CFD),. The software is used in the, and.Segmented images can be exported in the file format, surface meshes and, to CAD and 3D printing or, with the FE module, exported as surface/volume meshes directly into leading (CAE) solvers. The CAD and NURBS add-on modules can be used to integrate CAD objects into image data, and to convert scan data into -based models for CAD. The SOLID, FLOW and LAPLACE add-on modules can be used to calculate effective material properties from scanned samples using homogenisation techniques.
Screenshot of component being placed in hip model in Simpleware ScanIP Simpleware ScanIP generates high-quality 3D models from image data suitable for a wide range of design and simulation applications related to the life sciences. Image data from sources like MRI and CT can be visualised, analysed, segmented and quantified, before being exported as CAD, CAE and 3D printing models. Different tissues, bones and other parts of the body can be identified using a wide range of segmentation and processing tools in the software. Options are also available for integrating CAD and image data, enabling medical device research to be conducted into how CAD-designed implants interact with the human body. High-quality CAE models can similarly be used in research to simulate movement and the effect of different forces on anatomies. An example of this is the US Naval Research Laboratory/Simpleware head model, generated from high-resolution MRI scans and segmented to create data that can be easily meshed to suit specific finite element (FE) applications, such as head impact and concussion.Applications for the software have include: researching implant positioning, statistical shape analysis, and computational fluid dynamics analysis of blood flow in vascular networks. With Simpleware's scripting tools, it is possible to explore the best positioning for hip implants.
3D models can be used to analyse patellofemoral kinematics. Simpleware-generated human body models can be used to simulate the effect of electromagnetic radiation in MRI scanners. Other application areas for models created within Simpleware's software environment include simulating transcranial direct current stimulation, and testing electrode placements for treating epilepsy.
In terms of dental research, evaluations of dental implants have been made by integrating CAD objects with anatomical data and exporting for simulation. Simpleware ScanIP Medical is a version of the software intended for use as a medical device.
It has market clearance from the U.S. (FDA) as a Class II Medical Device, as well as and certifications.Simpleware ScanIP is intended for use as a software interface and image segmentation system for the transfer of imaging information from a medical scanner such as a CT scanner or an MRI scanner to an output file. It is also intended as pre-operative software for simulating/evaluating surgical treatment options. ScanIP is not intended to be used for mammography imaging.Those that still want to use Synopsys Simpleware ScanIP for non-clinical medical applications, such as research in the Life Sciences, are recommended to use the core Synopsys Simpleware ScanIP package, which is not intended for clinical use., including and Simpleware ScanIP is used to reconstruct anatomies from scan data for the investigation of different biological and other organic processes within the Natural Sciences. Paleontological uses of ScanIP include the reconstruction of dinosaur skeletons, while the software has been used to generate a model of a shark head suitable for rapid prototyping and testing of how sharks smell, and for generating STL models of a suitable for 3D printing. ScanIP has also been used for biomimicry projects for the, and for producing artworks inspired by morphology.
ScanIP can be used to reverse engineer ant necks to improve understanding of their mechanics. Simpleware ScanIP has extensive applications in different materials sciences and manufacturing workflows where researchers investigate the properties of scanned samples.
Scans of and other samples can be visualised and processed in ScanIP, enabling multiple phases and porous networks to be explored and analysed. Measurements can be taken, for example, of fractures and cracks, and statistics generated for porosity distribution and other features. ScanIP can be combined with the FE module to generate volume meshes for FE and CFD characterisation of stress or strain distribution, permeability and other material properties. Example applications include fuel cell characterisation, and modelling the effect of porosity on the elastic properties of synthetic graphite.
Simpleware ScanIP is used in the oil and gas industry for generating 3D models from scans of core samples and rocks. Image data taken from CT, micro-CT, scans and other imaging modalities can be imported and visualised, enabling exploration of pore networks, segmentation of regions of interest, and measurement and quantification of features. Processed data can be exported using the FE module as volume meshes for FEA and CFD in solvers, allowing for insights into fluid-structure-analysis and other geomechanical properties. (NDT) ScanIP can be used to create computational models suitable for detailed visualisation, analysis and export for simulation in CAE solvers. Scanned image data can be easily processed to identify regions of interest, measure defects, quantify statistics such as porosity, and generate CAD and CAE models. Example applications include research into characterising composites, foams, and food.
Scan Ip For Mac

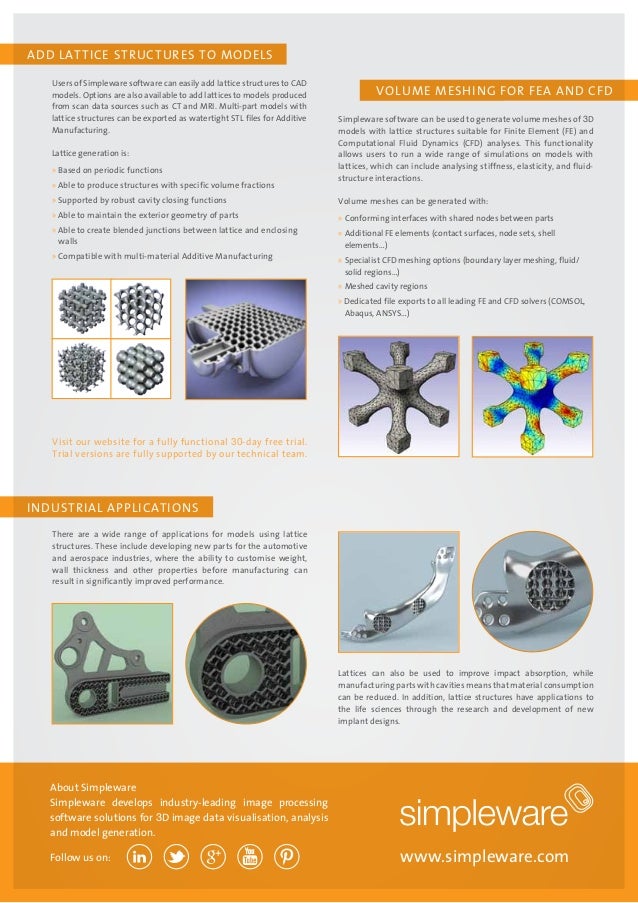

Screenshot of cylinder head registration in Simpleware ScanIPWith ScanIP, it is possible to reverse engineer legacy parts and other geometries that cannot be accurately created in CAD. Scans of objects can be visualised and processed in ScanIP to learn more about their original design, and exported as FE and CFD models for simulation of physical properties. The software has applications in aerospace, automotive and other fields needing to generate accurate 3D models from scans. Other applications include being able to reverse engineer consumer products in order to analyse their properties, or study how they interact with the human body without the need for invasive testing. ScanIP is capable of generating robust STL files for 3D printing. Files created using ScanIP feature guaranteed watertight triangulations and correct norms, as well as options for volume and topology preserving smoothing. STL files are generated with conforming interfaces, enabling multi-material printing.
Internal structures, otherwise known as lattices, can also be added to 3D models of parts in order to reduce weight prior to. Example applications include research into 3D printed medical devices, lattice support structure generation, and research into 3D organs.
